NT1069_EVK RF IC

NT1069_EVK RF IC

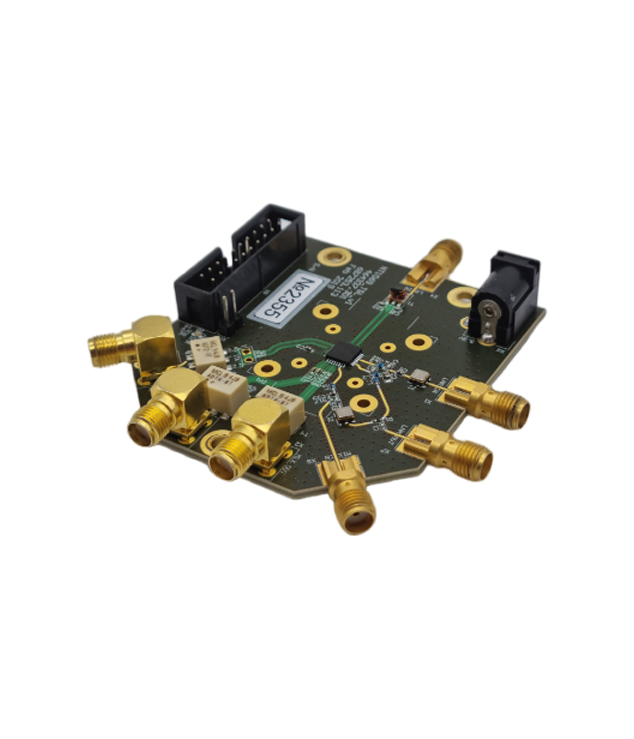

NT1069 EVK is an evaluation platform for performance and capabilities demonstration of NT1069: interference resistant RF Front-End IC which is intended for reception of all existing Global Navigational Satellite Systems (GNSS) signals such as GPS, GLONASS, Galileo, BeiDou, NavIC, QZSS in S, L1, L2, L3, L5, E1, E5a, E5b, E6, B1, B2, B3 bands. NT1069 EVK is suitable the most for in-lab examining with measurement equipment like spectrum analyzer, oscilloscope, network analyzer and etc, and also can be used for prototyping of navigation receivers based on NT1069 IC.
Datasheet

Key features

IO ports:

  • 50Ω SMA input connector for L1, L2, L3, L5 or S band GNSS signals reception
  • IF analog differential output (balanced). Single-ended IF output (unbalanced) is also available as assembly option
  • On-board frequency synthesizer
  • 50Ω SMA input connectors for external local oscillator connection
  • Connector for external controller for NT1069 and frequency synthesizer configuration

On-board reference frequency source:

  • 16.368MHz high-stability TCXO

Comprehensive software and documentation:

  • NT1069 datasheet
  • NT1069 EVK user manual
  • GUI for NT1069 and frequency synthesizer configuration (Windows 7/8/8.1/10 and Linux Ubuntu 18.04 compatible)
  • Database of PCB reference design PRELI
